An SAP Consultant: Floor Plan Manager - Creating a Simple FPM Application based on OIF(Object Instance Floorplan)

Building a FPM application is three step process

Create a Web Dynpro Component with the required UIBBs and implement the Web Dynpro interface IF_FPM_UI_BUILDING_BLOCK
Create a Web Dynpro Application and specify parameters according to which floorplan instance you are using.

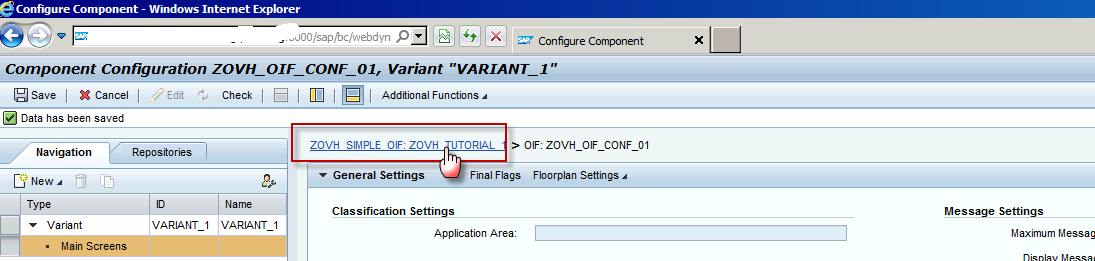

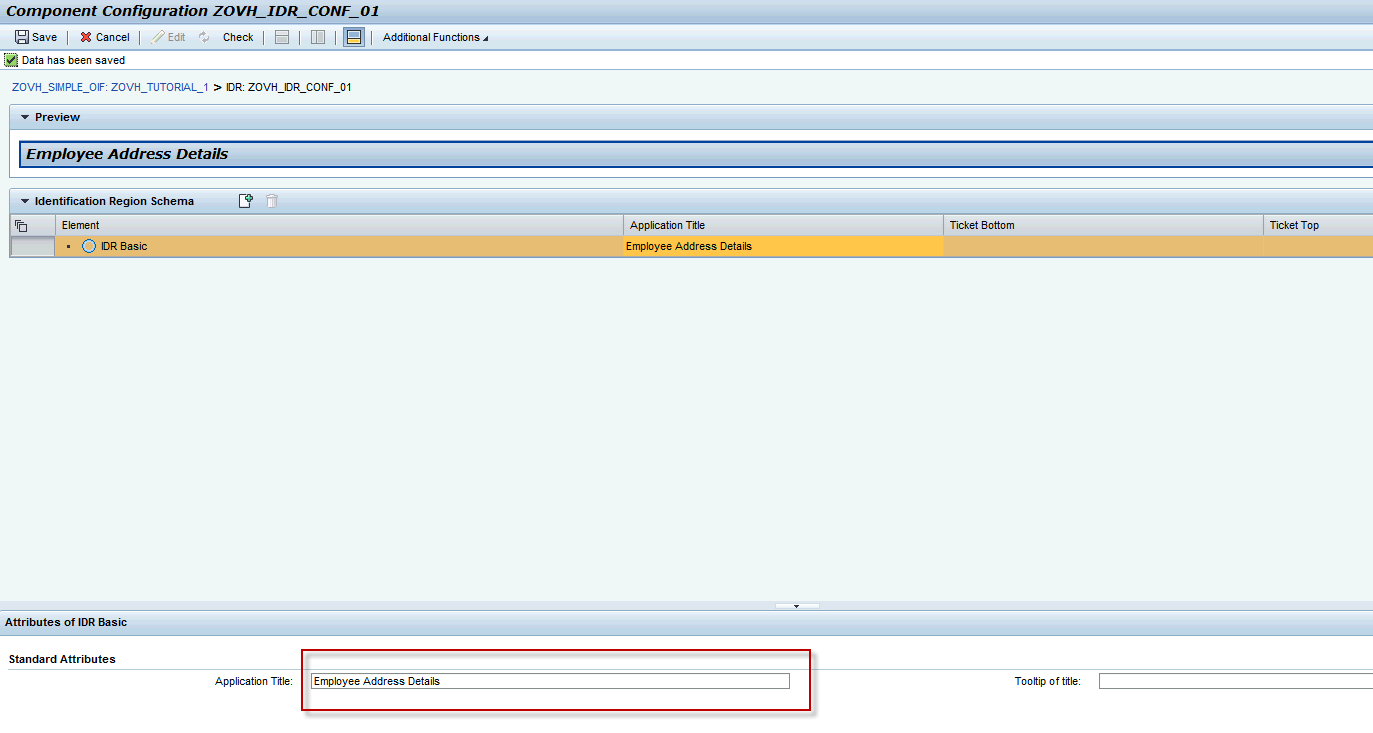

Create a configuration for the application Using the FPM Configuration Editor.

FPM: Floorplan Manager
OIF: Object Instance Floorplan
IDR: Identification Region
UIBB: User Interface Building Blocks

This tutorial explains you step by step process of creation of a very simple FPM based application. It will be OIF(Object Instance Floorplan) based and will simply employee address details.

Step 1: Creating the UIBBs used in the application.

Create Web Dynpro component(ZOVH_SIMPLE_OIF).

Double click on ZOVH_SIMPLE_OIF=>Implemented Interface tab. Display->Change Mode: Enter IF_FPM_UI_BUILDING_BLOCK Web Dynpro Interface component.

In order to generate methods generate the methods defined by the interface the button "Reimplement" has to be pressed.

Double click on view(V_VIEW)=>Context tab: Define IT_P0006 node with cardinality 0->n.

Layout tab=>Place Table UI element and Bind with note IT_P0006.

Methods tab=>WDDOMODIFYVIEW method. Write the below code

METHOD wddomodifyview .
  DATA lo_nd_it_p0006 TYPE REF TO if_wd_context_node.
  DATA lt_it_p0006 TYPE wd_this->elements_it_p0006.

  " navigate from <CONTEXT> to <IT_P0006> via lead selection
  lo_nd_it_p0006 = wd_context->get_child_node( name = wd_this->wdctx_it_p0006 ).
  "Read Records
  SELECT *
    FROM pa0006
    INTO CORRESPONDING FIELDS OF TABLE lt_it_p0006
    UP TO 20 ROWS.

  lo_nd_it_p0006->bind_table( new_items = lt_it_p0006 set_initial_elements = abap_true ).


ENDMETHOD.
