An SAP Consultant: Web Dynpro ABAP - OVS Help For Multiple Input Fields in Select-Options

OVS(Object Value Selection) help is to get F4 help. Previously we discussed about OVS help for Input field and OVS help in Selection Options. Here we will discuss on how to implement OVS Help For Multiple Input Fields in Select-Options.

Steps to achieve OVS Search Help For Multiple Input Fields in Select-Options

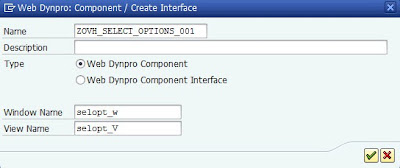

Create Web Dynpro Component with View and Window(Automatically View is embedded into Window) and Save it as local object.

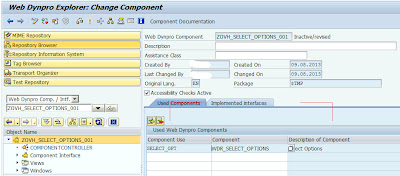

Define Component Use SELECT_OPT for the Used component WDR_SELECT_OPTIONS under Used Components tab of Web Dynpro Component.

Go to View SELOPT_V->Properties tab->Define or Include Used Controllers/ Components of Select Options.

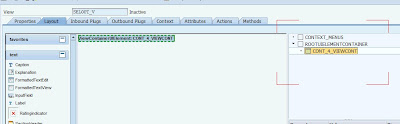

Go to view SELOPT_V ->Layout tab->Create ViewContainerUIElement to hold Select-Option field.

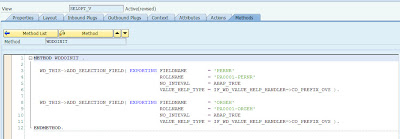

Go to view SELOPT_V ->Methods tab->Double click on WDDOINIT method and write the following code

WDDOINIT code

METHOD WDDOINIT .

  WD_THIS->ADD_SELECTION_FIELD( EXPORTING FIELDNAME       = 'PERNR'
                                          ROLLNAME        = 'PA0001-PERNR'
                                          NO_INTEVAL      = ABAP_TRUE
                                          VALUE_HELP_TYPE = IF_WD_VALUE_HELP_HANDLER=>CO_PREFIX_OVS ).

  WD_THIS->ADD_SELECTION_FIELD( EXPORTING FIELDNAME       = 'ORGEH'
                                          ROLLNAME        = 'PA0001-ORGEH'
                                          NO_INTEVAL      = ABAP_TRUE
                                          VALUE_HELP_TYPE = IF_WD_VALUE_HELP_HANDLER=>CO_PREFIX_OVS ).
ENDMETHOD.

ADD_SELECTION_FIELD method input fields

ADD_SELECTION_FIELD method code.

METHOD ADD_SELECTION_FIELD .
  "Instantiate Used Component
  DATA LO_CMP_USAGE TYPE REF TO IF_WD_COMPONENT_USAGE.
  LO_CMP_USAGE =   WD_THIS->WD_CPUSE_SELECT_OPT( ).
  IF LO_CMP_USAGE->HAS_ACTIVE_COMPONENT( ) IS INITIAL.
    LO_CMP_USAGE->CREATE_COMPONENT( ).
  ENDIF.
  " Instantiate Used Controller and Call Init_selection_screen method.
  DATA LO_INTERFACECONTROLLER TYPE REF TO IWCI_WDR_SELECT_OPTIONS .
  LO_INTERFACECONTROLLER =   WD_THIS->WD_CPIFC_SELECT_OPT( ).

  DATA LV_R_HELPER_CLASS TYPE REF TO IF_WD_SELECT_OPTIONS.
  LV_R_HELPER_CLASS = LO_INTERFACECONTROLLER->INIT_SELECTION_SCREEN( ).

  DATA LV_FIELDNAME TYPE STRING.
  DATA LV_ROLLNAME  TYPE STRING.

  LV_ROLLNAME  = ROLLNAME.
  LV_FIELDNAME = FIELDNAME.

  "Define RANGE table
  DATA RT_TABLE TYPE REF TO DATA.
  CALL METHOD LV_R_HELPER_CLASS->CREATE_RANGE_TABLE
    EXPORTING
      I_TYPENAME     = LV_ROLLNAME
    RECEIVING
      RT_RANGE_TABLE = RT_TABLE.
  "Disable CANCEL, CHECK, RESET and COPY buttons
  CALL METHOD LV_R_HELPER_CLASS->SET_GLOBAL_OPTIONS
    EXPORTING
      I_DISPLAY_BTN_CANCEL  = ABAP_FALSE
      I_DISPLAY_BTN_CHECK   = ABAP_FALSE
      I_DISPLAY_BTN_RESET   = ABAP_FALSE
      I_DISPLAY_BTN_EXECUTE = ABAP_FALSE.

  "Add range field to Selection screen
  CALL METHOD LV_R_HELPER_CLASS->ADD_SELECTION_FIELD
    EXPORTING
      I_ID                         = LV_FIELDNAME
      IT_RESULT                    = RT_TABLE
      I_OBLIGATORY                 = OBLIGATORY
      I_NO_EXTENSION               = NO_EXTENSION
      I_DESCRIPTION                = DESCRIPTION
      I_VALUE_HELP_TYPE            = VALUE_HELP_TYPE
      I_VALUE_HELP_ID              = SEARCH_HELP
      I_VALUE_HELP_STRUCTURE       = VALUE_HELP_STRUCTURE
      I_VALUE_HELP_STRUCTURE_FIELD = VALUE_HELP_STRUCTURE_FIELD
      I_NO_INTERVALS               = NO_INTEVAL.


ENDMETHOD.

Go to view SELOPT_V ->Methods tab->Double click on WDDOINIT method and write the following code.

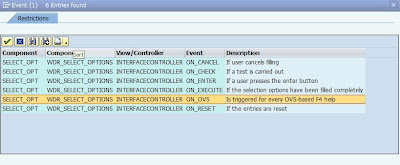

Go to view SELOPT_V->Methods tab-> Create one Event Handler method OVS_4_SELECT_OPT -> Select the event ON_OVS of component WDR_SELECT_OPTIONS using F4 help for Event field.

OVS_4_SELECT_OPT event handler method code.

METHOD OVS_4_SELECT_OPT .
  IF I_OVS_DATA-M_SELECTION_FIELD_ID = 'ORGEH'.
    WD_THIS->OVS_DEP( I_OVS_DATA ).
  ELSEIF I_OVS_DATA-M_SELECTION_FIELD_ID = 'PERNR'.
    WD_THIS->OVS_PERNR( I_OVS_DATA ).
  ENDIF.
ENDMETHOD.

OVS_DEP method code.

METHOD OVS_DEP .
* declare data structures for the fields to be displayed and
* for the table columns of the selection list, if necessary
  TYPES:
    BEGIN OF LTY_STRU_INPUT,
          " Add fields for the display of your search input here
          ORGEH TYPE PA0001-ORGEH,
          ORGTX TYPE T527X-ORGTX,
    END OF LTY_STRU_INPUT.
  TYPES:
    BEGIN OF LTY_STRU_LIST,
*   add fields for the selection list here
          ORGEH TYPE PA0001-ORGEH,
          ORGTX TYPE T527X-ORGTX,
    END OF LTY_STRU_LIST.

  DATA: LS_SEARCH_INPUT  TYPE LTY_STRU_INPUT,
        LT_SELECT_LIST   TYPE STANDARD TABLE OF LTY_STRU_LIST,
        LS_TEXT          TYPE WDR_NAME_VALUE,
        LT_LABEL_TEXTS   TYPE WDR_NAME_VALUE_LIST,
        LT_COLUMN_TEXTS  TYPE WDR_NAME_VALUE_LIST,
        LRT_DEP          TYPE CCHRY_ORGEH_RANGE,
        LV_WINDOW_TITLE  TYPE STRING,
        LV_TABLE_HEADER  TYPE STRING.

  FIELD-SYMBOLS: <LS_QUERY_PARAMS> TYPE LTY_STRU_INPUT,
                 <LS_SELECTION>    TYPE LTY_STRU_LIST.

  CASE I_OVS_DATA-M_OVS_CALLBACK_OBJECT->PHASE_INDICATOR.

    WHEN IF_WD_OVS=>CO_PHASE_0.  "configuration phase, may be omitted
*   in this phase you have the possibility to define the texts,
*   if you do not want to use the defaults (DDIC-texts)

      LS_TEXT-NAME  = 'ORGEH'.  "must match a field name of search
      LS_TEXT-VALUE = 'Org Unit ID'. "wd_assist->get_text( `001` ).
      INSERT LS_TEXT INTO TABLE LT_LABEL_TEXTS.

      LS_TEXT-NAME  = 'STEXT'.  "must match a field in list structure
      LS_TEXT-VALUE = 'Org Unit Description'. "wd_assist->get_text( `002` ).
      INSERT LS_TEXT INTO TABLE LT_COLUMN_TEXTS.

      LV_WINDOW_TITLE = 'Department Selection'. "wd_assist->get_text( `003` ).
*      lv_table_header = wd_assist->get_text( `004` ).

      I_OVS_DATA-M_OVS_CALLBACK_OBJECT->SET_CONFIGURATION(
                LABEL_TEXTS  = LT_LABEL_TEXTS
                COLUMN_TEXTS = LT_COLUMN_TEXTS
                WINDOW_TITLE = LV_WINDOW_TITLE
                TABLE_HEADER = LV_TABLE_HEADER ).


    WHEN IF_WD_OVS=>CO_PHASE_1.  "set search structure and defaults
*   In this phase you can set the structure and default values
*   of the search structure. If this phase is omitted, the search
*   fields will not be displayed, but the selection table is
*   displayed directly.
*   Read values of the original context (not necessary, but you
*   may set these as the defaults). A reference to the context
*   element is available in the callback object.

*      I_OVS_DATA-M_OVS_CALLBACK_OBJECT->CONTEXT_ELEMENT->GET_STATIC_ATTRIBUTES(
*          IMPORTING STATIC_ATTRIBUTES = LS_SEARCH_INPUT ).
*     pass the values to the OVS component
*      I_OVS_DATA-M_OVS_CALLBACK_OBJECT->SET_INPUT_STRUCTURE(
*          INPUT = LS_SEARCH_INPUT ).

    WHEN IF_WD_OVS=>CO_PHASE_2.
*   If phase 1 is implemented, use the field input for the
*   selection of the table.
*   If phase 1 is omitted, use values from your own context.

      "IF OVS_CALLBACK_OBJECT->QUERY_PARAMETERS IS NOT BOUND.
      "TODO exception handling
      "ENDIF.
*      ASSIGN I_OVS_DATA-M_OVS_CALLBACK_OBJECT->QUERY_PARAMETERS->*
*                              TO <LS_QUERY_PARAMS>.
      "IF NOT <LS_QUERY_PARAMS> IS ASSIGNED.
      "TODO exception handling
      "ENDIF.

      SELECT        * FROM  T527X INTO CORRESPONDING FIELDS OF TABLE LT_SELECT_LIST UP TO 50 ROWS
             WHERE  SPRSL  = SY-LANGU.
*     call business logic for a table of possible values
*     lt_select_list = ???

      I_OVS_DATA-M_OVS_CALLBACK_OBJECT->SET_OUTPUT_TABLE( OUTPUT = LT_SELECT_LIST ).


    WHEN IF_WD_OVS=>CO_PHASE_3.
*   apply result
      ASSIGN I_OVS_DATA-M_OVS_CALLBACK_OBJECT->SELECTION->* TO <LS_SELECTION>.
      IF <LS_SELECTION> IS ASSIGNED.
        I_OVS_DATA-M_OVS_CALLBACK_OBJECT->CONTEXT_ELEMENT->SET_ATTRIBUTE(
                               NAME  = I_OVS_DATA-M_OVS_CALLBACK_OBJECT->CONTEXT_ATTRIBUTE
                               VALUE = <LS_SELECTION>-ORGEH ).

      ENDIF.
  ENDCASE.
ENDMETHOD.

OVS_PERNR method code.

METHOD OVS_PERNR .

* declare data structures for the fields to be displayed and
* for the table columns of the selection list, if necessary
  TYPES:
    BEGIN OF LTY_STRU_INPUT,
          " Add fields for the display of your search input here
          PERNR TYPE PA0001-PERNR,
          ENAME TYPE PA0001-ENAME,
    END OF LTY_STRU_INPUT.
  TYPES:
    BEGIN OF LTY_STRU_LIST,
*   add fields for the selection list here
          PERNR TYPE PA0001-PERNR,
          ENAME TYPE PA0001-ENAME,
    END OF LTY_STRU_LIST.

  DATA: LS_SEARCH_INPUT  TYPE LTY_STRU_INPUT,
        LT_SELECT_LIST   TYPE STANDARD TABLE OF LTY_STRU_LIST,
        LS_TEXT          TYPE WDR_NAME_VALUE,
        LT_LABEL_TEXTS   TYPE WDR_NAME_VALUE_LIST,
        LT_COLUMN_TEXTS  TYPE WDR_NAME_VALUE_LIST,
        LRT_DEP          TYPE CCHRY_ORGEH_RANGE,
        LV_WINDOW_TITLE  TYPE STRING,
        LV_TABLE_HEADER  TYPE STRING.

  FIELD-SYMBOLS: <LS_QUERY_PARAMS> TYPE LTY_STRU_INPUT,
                 <LS_SELECTION>    TYPE LTY_STRU_LIST.

  CASE I_OVS_DATA-M_OVS_CALLBACK_OBJECT->PHASE_INDICATOR.

    WHEN IF_WD_OVS=>CO_PHASE_0.  "configuration phase, may be omitted
*   in this phase you have the possibility to define the texts,
*   if you do not want to use the defaults (DDIC-texts)

      LS_TEXT-NAME = `PERNR`.  "must match a field name of search
      LS_TEXT-VALUE = `Employee No.`. "wd_assist->get_text( `001` ).
      INSERT LS_TEXT INTO TABLE LT_LABEL_TEXTS.

      LS_TEXT-NAME = `ENAME`.  "must match a field in list structure
      LS_TEXT-VALUE = `Employee Name`. "wd_assist->get_text( `002` ).
      INSERT LS_TEXT INTO TABLE LT_COLUMN_TEXTS.

      LV_WINDOW_TITLE = 'Personnel No. Selection'. "wd_assist->get_text( `003` ).
*      lv_table_header = wd_assist->get_text( `004` ).

      I_OVS_DATA-M_OVS_CALLBACK_OBJECT->SET_CONFIGURATION(
                LABEL_TEXTS  = LT_LABEL_TEXTS
                COLUMN_TEXTS = LT_COLUMN_TEXTS
                WINDOW_TITLE = LV_WINDOW_TITLE
                TABLE_HEADER = LV_TABLE_HEADER ).


    WHEN IF_WD_OVS=>CO_PHASE_1.  "set search structure and defaults
*   In this phase you can set the structure and default values
*   of the search structure. If this phase is omitted, the search
*   fields will not be displayed, but the selection table is
*   displayed directly.
*   Read values of the original context (not necessary, but you
*   may set these as the defaults). A reference to the context
*   element is available in the callback object.

*      I_OVS_DATA-M_OVS_CALLBACK_OBJECT->CONTEXT_ELEMENT->GET_STATIC_ATTRIBUTES(
*          IMPORTING STATIC_ATTRIBUTES = LS_SEARCH_INPUT ).
*     pass the values to the OVS component


*****      I_OVS_DATA-M_OVS_CALLBACK_OBJECT->SET_INPUT_STRUCTURE(
*****          INPUT = LS_SEARCH_INPUT ).


    WHEN IF_WD_OVS=>CO_PHASE_2.
*   If phase 1 is implemented, use the field input for the
*   selection of the table.
*   If phase 1 is omitted, use values from your own context.

      "IF OVS_CALLBACK_OBJECT->QUERY_PARAMETERS IS NOT BOUND.
      "TODO exception handling
      "ENDIF.
      ASSIGN I_OVS_DATA-M_OVS_CALLBACK_OBJECT->QUERY_PARAMETERS->*
                              TO <LS_QUERY_PARAMS>.
      "IF NOT <LS_QUERY_PARAMS> IS ASSIGNED.
      "TODO exception handling
      "ENDIF.
*      CALL METHOD WD_ASSIST->PERNR_4_MGR
*        EXPORTING
*          DEPARTMENT   = LRT_DEP
*          QUERY_PARAMS = <LS_QUERY_PARAMS>
*        IMPORTING
*          PERNR_4_MGR  = LT_SELECT_LIST.
*     call business logic for a table of possible values
*     lt_select_list = ???
      SELECT PERNR ENAME FROM PA0001 INTO TABLE LT_SELECT_LIST UP TO 50 ROWS.

      I_OVS_DATA-M_OVS_CALLBACK_OBJECT->SET_OUTPUT_TABLE( OUTPUT = LT_SELECT_LIST ).


    WHEN IF_WD_OVS=>CO_PHASE_3.
*   apply result
      ASSIGN I_OVS_DATA-M_OVS_CALLBACK_OBJECT->SELECTION->* TO <LS_SELECTION>.
      IF <LS_SELECTION> IS ASSIGNED.
        I_OVS_DATA-M_OVS_CALLBACK_OBJECT->CONTEXT_ELEMENT->SET_ATTRIBUTE(
                               NAME  = I_OVS_DATA-M_OVS_CALLBACK_OBJECT->CONTEXT_ATTRIBUTE
                               VALUE = <LS_SELECTION>-PERNR ).
      ENDIF.
  ENDCASE.
ENDMETHOD.
