Create Web Dynpro Component with Window and View(Automatically View is embedded into Window).

Define Component Use ALV for the Used component SALV_WD_TABLE under Used Components tab of Web Dynpro Component.

Go to Component Controller COMPONENTCONTROLLER.

Properties tab->Define or Include Used Controllers/ Components of ALV.

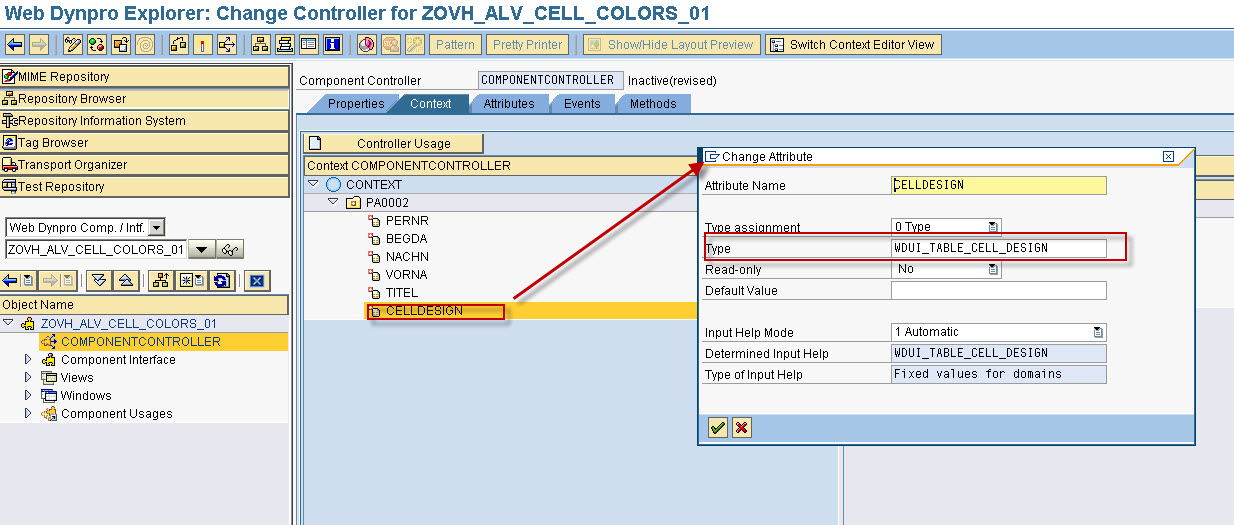

Context tab->Create PA0002 node with cardinality 0..n as shown in the picture. CELLDESIGN attribute is used to set colour of the cell.

Methods tab->Write the code in WDDOINIT to populate data in ALV and Change ALV Configuration.

WDDOINIT method code

METHOD wddoinit .
  wd_this->get_data( ).
  wd_this->configure_alv( ).
ENDMETHOD.

GET_DATA method code

METHOD get_data .
  DATA lo_nd_pa0002 TYPE REF TO if_wd_context_node.
  DATA lt_pa0002 TYPE wd_this->elements_pa0002.
  DATA ls_pa0002 LIKE LINE OF  lt_pa0002.
  "Navigate from <CONTEXT> to <PA0002> via lead selection
  lo_nd_pa0002 = wd_context->get_child_node( name = wd_this->wdctx_pa0002 ).
  SELECT *
    FROM pa0002
    INTO CORRESPONDING FIELDS OF TABLE lt_pa0002
    UP TO 40 ROWS.
  LOOP AT lt_pa0002 INTO ls_pa0002.
    ls_pa0002-celldesign = cl_wd_table_column=>e_cell_design-goodvalue_light.
    MODIFY lt_pa0002 FROM ls_pa0002.
  ENDLOOP.
  lo_nd_pa0002->bind_table( new_items = lt_pa0002 set_initial_elements = abap_true ).

ENDMETHOD.

CONFIGURE_ALV method code

METHOD configure_alv .
  "Instantiate Used Component
  DATA lo_cmp_usage TYPE REF TO if_wd_component_usage.
  lo_cmp_usage =   wd_this->wd_cpuse_alv( ).
  IF lo_cmp_usage->has_active_component( ) IS INITIAL.
    lo_cmp_usage->create_component( ).
  ENDIF.
  "Create an instance of ALV Interface Controller
  DATA lo_interfacecontroller TYPE REF TO iwci_salv_wd_table .
  lo_interfacecontroller =   wd_this->wd_cpifc_alv( ).
  "Configuration of the ALV Output
  DATA lv_value TYPE REF TO cl_salv_wd_config_table.
  lv_value = lo_interfacecontroller->get_model( ).
  DATA:
        lr_column_settings TYPE REF TO if_salv_wd_column_settings,
        lt_columns         TYPE salv_wd_t_column_ref,
        ls_columns         LIKE LINE OF lt_columns,
        l_column   type REF TO cl_salv_wd_column.

  lr_column_settings ?= lv_value.
  lt_columns = lr_column_settings->get_columns( ).
  LOOP AT lt_columns INTO ls_columns.
    CASE ls_columns-id.
      WHEN 'PERNR'.
      ls_columns-r_column->set_cell_design_fieldname( value = 'CELLDESIGN' ).
      lv_value->if_salv_wd_column_settings~delete_column( id = 'CELLDESIGN' ).
    ENDCASE.
  ENDLOOP.

ENDMETHOD.
